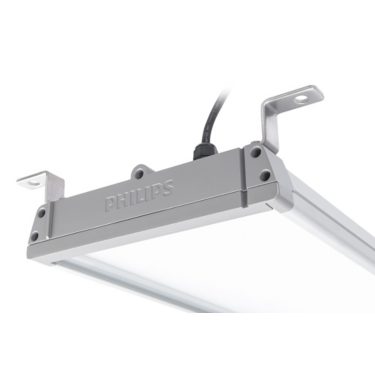

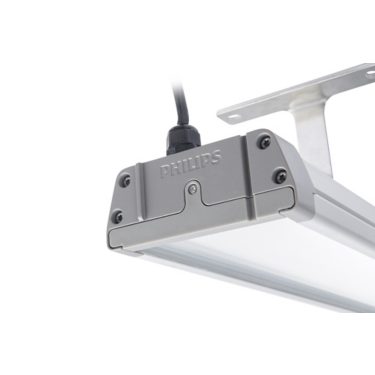

LineBase is breakthrough lighting for the city tunnel, underpass. It’s a really and amazingly linear lighting yet easy to install, and it’s the ideal solution to replace fluorescent lighting. The customized lumen output of LineBase enables lighting designers to have freedom on lighting layout. Its continous installalation is to create a seamless, brighter, comfortable visual effect with less flicker. Its plug-and-play electrical connection and remote waterproof drivers save total cost of owner. The products pass kinds of safety and durability test to prove a long lifespan on its operation.
Benefits
Continuous installation for visual comfort
Flexible lumen package for more application
Remote driver attached to housing for flexibility
Compact end cap for amazing linear yet easy to install
Features
Wattage ranges from 10-60W, lumen output customized
Slim and linear housing, compact end cap with positioning-slot
Typical 120-130lm/w system efficacy
IP 67 connector for plug-and-play quick installation
Loop in-and loop out wiring for easy installation
Applications
City tunnel, Underpass, Road lighting, Industrial areas
Warning & Safety
Strongly recommended to use surge protection device in electricity cabinet to wire luminaires
Specifications
Material
Housing: die-cast aluminiumOptic cover: glass
Light Source
2835/3030 LED
Installation
Fixed and adjustable bracket optionsAdjustable tilting angle +/- 60D
